Level measurement at the reservoir
Share:

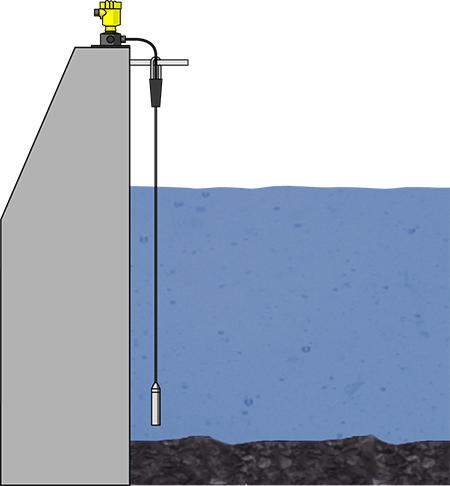

Reservoir at the pumped storage power plant
Level measurement at the reservoir
 |
|
Process data
Measuring task
Level measurement
Measuring point
Basin, reservoir
Measuring range up to
70 m
Medium
Water
Process temperature
0 … +25 °C
Process pressure
0 … 0 bar
Features
Wind, weather, temperature changes, ice formation
Application
Pumped storage power plants store a large amount of energy and feed it into the grid very quickly when necessary. One important parameter is the height of the water level in the reservoir. It allows calculations to be made about the amount of energy available and the existing storage volume in pump operation mode. High reliability is required from the measurement technology deployed, because the sensors are often mounted at very remote locations.
Your benefit
Reliable
Ensures reliable efficient, optimal operation of the hydroelectric plant
Cost effective
Maintenance-free measurement
User friendly
Simple installation on existing structures
Recommended products
VEGAPULS 68
Non-contact level measurement with radar for determining the water level
- High accuracy over the entire measuring range
- Excellent long-term stability due to wear-free measurement
- Unaffected by temperature, rain or snow
Measuring range - Distance
75 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
