Density measurement in lime milk
Share:

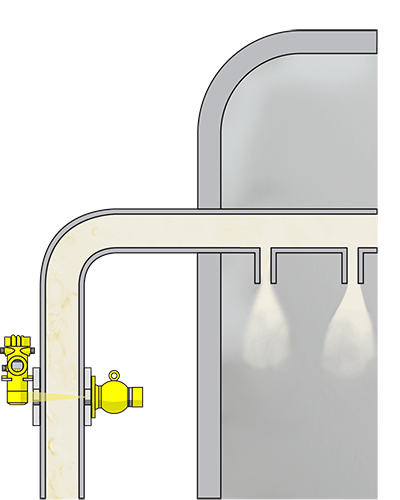

Lime milk pipeline
Density measurement in lime milk
 |
|
Process data
Measuring task
Density measurement
Measuring point
Pipeline
Measuring range up to
0.3 m
Medium
Lime milk
Process temperature
-40 … +50 °C
Process pressure
+1 … +3 bar
Special challenges
Determining exact density of lime milk
Application
The flue gas enters the scrubbing tower (absorber) and cools down further. Here the lime milk (gypsum suspension) is sprayed into the flue gas to wash out the SO2 gas component. The sulphur dioxide is converted into calcium sulphite, which then falls into the absorber sump. To ensure effective flue gas desulfurization, the lime milk (gypsum suspension) must always have a certain density. Radiation-based measurement is used to ensure this.
Your benefit
Reliable
Maximum safety through approvals according to SIL Klicken Sie hier, um Text einzugeben.
Cost effective
Reliable density measurement ensures high plant availability
User friendly
Maintenance-free through non-contact measurement
Recommended Products
MINITRAC 31
Radiation-based density measurement ensures efficient desulfurization
- Non-contact density measurement from the outside, right through the pipeline
- High system availability ensured through wear and maintenance-free operation
- Accurate measuring result, approval according to SIL2
Measuring range - Distance
-
Process temperature
-40 ... 60 °C
Process pressure
-
VEGASOURCE 31
The source container serves as a receptacle and shield for the radioactive source
- Focuses the radiation
- Protects the surroundings from gamma radiation
- Minimal space requirements and simple mounting
Ambient temperature
-20 ... 80 °C
Inquiry - Density measurement in lime milk
